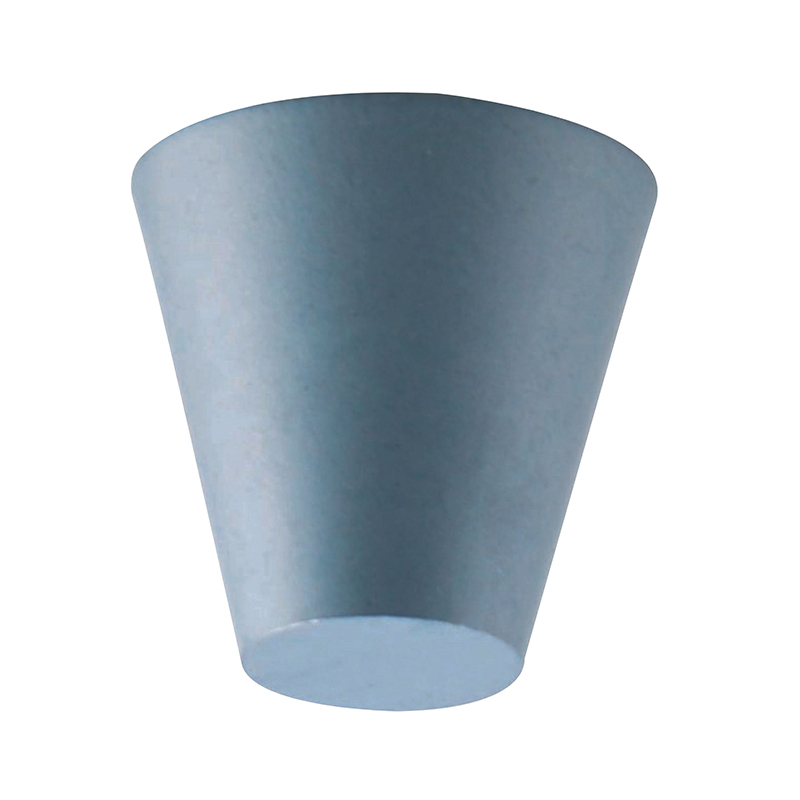

- PRODUCT : manufacturing Burrs of Shape N-Inverted cone
- SORT : Carbide burr blanks
- TIME：2020-12
- ADD QQ
- ADD WECHAT
?
旋轉銼毛坯產品加工成工具，產品主要面向船舶、汽車、航天、高鐵制造以及軍工鑄造、鈦鋁合金加工等機械制造行業，并逐步向牙科醫療、雕刻領域延伸。
The carbide bur blanks can be processed to rotary burrs mainly aiming at machine manufacturing industy. including he manufacture of ship, automobile. aerospace and high- speed train, casting in military industry. fitanium-aluminumloy processing etc. extending to dentisty and carving gradully.
材質性能及應用領域
Material properties and application fields
牌號 Grade | 鈷含量Cobalt content% | 物理機械性能(典型值) Physical and mechanical properties (typical data) | 應用領域 Application fields | |||
密度Density (g/cm3)±0.1 | 硬度Hardness (HRA)±0.5 | 抗彎強度Bending Strength TRS (MPa)≥ | 晶粒度Grain size of WC (μm) | |||
| YG7 | 7 | 14.82 | 90 | 2700 | 1.6 | 旋轉銼通用牌號，耐磨性好，同時具有很好的韌性，適合銀焊接和銅焊接。 The burr blanks with universal grade have good performance of abrasion resistance and toughness. They are suitable for silver and copper brazing. |
| RK10X | 10 | 14.45 | 91.5 | 3000 | 0.8 | 補充牌號，其耐磨性和使用壽命優于YG7,適合銀焊，對焊接工藝要求較高。 As for the burr blanks with supplemental grade, their abrasion resistance is better than that of YG7 and their service life is longer. With higher requirements on brazing process, they are suitable for silver brazing. |
| RK6X | 6 | 14.93 | 92.2 | 2800 | 1.0 | 其耐磨性優于RK10X,使用壽命更長，適合銀焊，對焊接要求更高。 Their abrasion resistance is better than that of RK10X, so the service life is longer. With higher requirements on brazing, they are suitable for silver brazing. |
可根據客戶要求的性能指標以及尺寸生產
Can be manufactured according to the performance indexes and dimensions required by customers.
適用于生產倒錐型旋轉銼刀
Suitable for manutacturing Burrs of Shape N- Inverted cone
英制Inch
| Blank Designation | D | H | d | C | ||
| Normal | Actual | Normal | Actual | |||
| BSN-51 | 1/4 | 0.265 | 1/4 | 0.250 | 0.221 | 10 |
| BSN-2 | 3/8 | 0.390 | 3/8 | 0.375 | 0.305 | 13 |
| BSN-3 | 1/2 | 0.515 | 1/2 | 0.500 | 0.374 | 16 |
| BSN-4 | 1/2 | 0.515 | 1/2 | 0.500 | 0.266 | 28 |
| BSN-5 | 5/8 | 0.640 | 5/8 | 0.625 | 0.431 | 19 |
| BSN-6 | 5/8 | 0.640 | 3/4 | 0.750 | 0.403 | 18 |
| BSN-7 | 3/4 | 0.767 | 5/8 | 0.625 | 0.432 | 30 |
公制Metric
| 型號 Type | 基本尺寸 Basic dimensions (mm) | |||
| D | H | d | C | |
| N0407 | 4.5 | 7.3 | 2.8 | 10 |
| N0507 | 5.5 | 7.3 | 3.8 | 10 |
| N0607 | 6.5 | 7.3 | 4.8 | 10 |
| N0813 | 8.5 | 13.3 | 5.7 | 10 |
| N1013 | 10.5 | 13.3 | 7.7 | 10 |
| N1213 | 12.5 | 13.3 | 7.4 | 20 |
